malla para filtracion

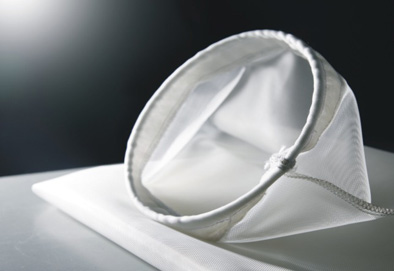

Woven filter mesh is made by polyster or nylon which weaving by plain Woven,Twill woven and satin woven etc.

The mesh will be woven for filtration to seperate solid and particles from gas,water.

Mesh opening (microns)	Open area(%)	Thickness (um)
816	65	440
740	53	465
522	47	485
435	47	420
400	52	285
400	64	200
340	46	280
340	50	250
316	58	190
300	51	210
275	43	245
277	60	150
245	61	110
245	61	110
232	55	140
200	43	160
190	38	205
245	61	100
210	45	165
178	41	175
145	26	215
201	62	100
172	46	142
150	41	130
135	41	115
105	33	114
115	39	102
100	40	93
95	32	100
90	32	106
101	42	105
90	32	106
80	30	90
94	46	80
75	29	92
78	30	84
70	25	88
78	30	84
70	25	88
55	25	78
58	32	65
48	27	65
45	30	55
40	20	55
35	26	48
30	20	55
30	20	69
32	23	47
25	17	49
